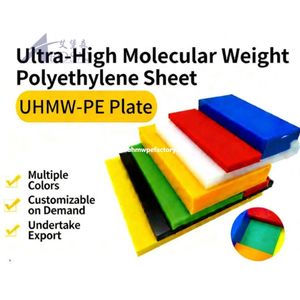

UHMWPE1000 ultra high molecular weight polyethylene (UHMW-PE) is the first choice material for facing steel fender panels and other heavy duty applications. They also used in corner pad for marine fender cover/ coner marine fender pads for jetty . It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is UHWMPE1000-DS which is 'double-sintered' and work-hardened for extra durability. The standard colour is black, but if other colours are needed then UHMWPE 1000-V 'virgin' grade also comes in yellow, white, grey, blue, green and red. UHMW-PE1000 materials are compounded to resist ozone and UV radiation. They do not degrade or rot .
some coal bunker,grain elevator, there is a terrible situation that coal and grain will be block on the bottomof coal bunker/grain elevator. It reduces the efficiency, and also caused the much waste of coal and food. Regarding this terrible situation, our ABOSN UHMWPE liner is a good idea. UHMWPE plastic Coal Bunker Liner Sheet cost savings of coal and grain, do not be bet on warehouse, saving the working time and accelerate the particles velocity, and UHMWPE plastic Coal Bunker Liner Sheet is good for the protection of capsule and machinery
UHMW-PE is a strong wear resistant material with many applications including bunker liners. It is easy to install. The lining is designed to protect the bunkers, extending the working life significantly.
UPE PE boron-containing board is mainly used to protect neutrons and gamma rays, with good radiation resistance, no activation products, low gamma ray energy, high mechanical properties, corrosion resistance, non-toxic and tasteless, impact resistance, low temperature resistance and chemical stability.
The boron-containing polyethylene board produced by our company is mainly used in various nuclear power plants, nuclear reactors, petrochina, Chinese academy of sciences, research laboratories, hospitals and nuclear experimental products tanks, neutron beam collimators, neutron traps, control rod materials for nuclear reactors and nuclear shielding materials and other research fields.As a shielding material for absorption of neutrons, gamma rays and radiation.
UHMWPE resin is an engineering hermoplastic composed of ethylene and butadiene monomer---under the action of catalyst. The viscosity average molecular weight of UHMWPE is more than 1.5 million --- 7 million, and it is called "The Fantastic Plastic".
Ultra-high molecular weight polyethylene(UHMWPE) integrated the advantages of all plastic. Such as high impact resistance, wear resistance, anti-corrosion, self-lubrication, low-temperature resistance. Cause of these five advantages, UHMWPE is widely used in Europe, America and other
countries.
UHMWPE1000 ultra high molecular weight polyethylene (UHMW-PE) is the first choice material for facing steel fender panels and other heavy duty applications. They also used in corner pad for marine fender cover/ coner marine fender pads for jetty . It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is UHWMPE1000-DS which is 'double-sintered' and work-hardened for extra durability. The standard colour is black, but if other colours are needed then UHMWPE 1000-V 'virgin' grade also comes in yellow, white, grey, blue, green and red. UHMW-PE1000 materials are compounded to resist ozone and UV radiation. They do not degrade or rot .
some coal bunker,grain elevator, there is a terrible situation that coal and grain will be block on the bottomof coal bunker/grain elevator. It reduces the efficiency, and also caused the much waste of coal and food. Regarding this terrible situation, our ABOSN UHMWPE liner is a good idea. UHMWPE plastic Coal Bunker Liner Sheet cost savings of coal and grain, do not be bet on warehouse, saving the working time and accelerate the particles velocity, and UHMWPE plastic Coal Bunker Liner Sheet is good for the protection of capsule and machinery
UHMW-PE is a strong wear resistant material with many applications including bunker liners. It is easy to install. The lining is designed to protect the bunkers, extending the working life significantly.
UPE PE boron-containing board is mainly used to protect neutrons and gamma rays, with good radiation resistance, no activation products, low gamma ray energy, high mechanical properties, corrosion resistance, non-toxic and tasteless, impact resistance, low temperature resistance and chemical stability.
The boron-containing polyethylene board produced by our company is mainly used in various nuclear power plants, nuclear reactors, petrochina, Chinese academy of sciences, research laboratories, hospitals and nuclear experimental products tanks, neutron beam collimators, neutron traps, control rod materials for nuclear reactors and nuclear shielding materials and other research fields.As a shielding material for absorption of neutrons, gamma rays and radiation.
UHMWPE resin is an engineering hermoplastic composed of ethylene and butadiene monomer---under the action of catalyst. The viscosity average molecular weight of UHMWPE is more than 1.5 million --- 7 million, and it is called "The Fantastic Plastic".
Ultra-high molecular weight polyethylene(UHMWPE) integrated the advantages of all plastic. Such as high impact resistance, wear resistance, anti-corrosion, self-lubrication, low-temperature resistance. Cause of these five advantages, UHMWPE is widely used in Europe, America and other
countries.
Parameters Table
Physical Properties | Test Method | Unit | Value |
Density | ASTM D792 | g/cm3 | 0.93-0.97 |
Water Absorption | ASTM D570 | ℃ | <0.01 |
Mechanical Properties | Test Method | Unit | Value |
Tensile Strength | ASTM D638 | MPa | 40 |
Elongation, at break | ASTM D638 | % | 300 |
Flexural Strength | ASTM D790 | MPa | 24 |
Compression Strength, 10% Deformation | ASTM D695 | MPa | 21 |
Hardness, Shore D | ASTM D2240 | - | D66 |
Coefficient of Friction | - | - | 0.12 |
Thermal Properties | Test Method | Unit | Value |
Heat Deflection Temperature | ASTM D648 | ℃ | 47 |
Melting Point | ASTM D3412 | ℃ | 135 |
Continuous Service Temperature | - | ℃ | 82 |
Electrical Properties | Test Method | Unit | Value |
Surface Resistivity | ASTM D257 | Ω-M | >10 15 |
Dielectric Constant 106Hz | ASTM D150 | 2.3 | |
Volume resistively | ASTM D257 | Ω*cm | >10 15 |
Dielectric strength | ASTM D604 | kV/mm | 45 |
Parameters Table
Physical Properties | Test Method | Unit | Value |
Density | ASTM D792 | g/cm3 | 0.93-0.97 |
Water Absorption | ASTM D570 | ℃ | <0.01 |
Mechanical Properties | Test Method | Unit | Value |
Tensile Strength | ASTM D638 | MPa | 40 |
Elongation, at break | ASTM D638 | % | 300 |
Flexural Strength | ASTM D790 | MPa | 24 |
Compression Strength, 10% Deformation | ASTM D695 | MPa | 21 |
Hardness, Shore D | ASTM D2240 | - | D66 |
Coefficient of Friction | - | - | 0.12 |
Thermal Properties | Test Method | Unit | Value |
Heat Deflection Temperature | ASTM D648 | ℃ | 47 |
Melting Point | ASTM D3412 | ℃ | 135 |
Continuous Service Temperature | - | ℃ | 82 |
Electrical Properties | Test Method | Unit | Value |
Surface Resistivity | ASTM D257 | Ω-M | >10 15 |
Dielectric Constant 106Hz | ASTM D150 | 2.3 | |
Volume resistively | ASTM D257 | Ω*cm | >10 15 |
Dielectric strength | ASTM D604 | kV/mm | 45 |
Product Characteristics:
1.Excellent abrasion resistance
2.Low coefficient of friction
3.No moisture absorption
4.Corrosion resistant
5.Excellent noise abatement
6.Excellent impact strength
7.Maintains key physical properties to -200ºC
Product Characteristics:
1.Excellent abrasion resistance
2.Low coefficient of friction
3.No moisture absorption
4.Corrosion resistant
5.Excellent noise abatement
6.Excellent impact strength
7.Maintains key physical properties to -200ºC
Application
1. Chute and hopper linings
1. Bulk storage
2. Material handling
3. Mechanical bearing parts
4. Wear parts
5. Food machinery equipment and so on
Application
1. Chute and hopper linings
1. Bulk storage
2. Material handling
3. Mechanical bearing parts
4. Wear parts
5. Food machinery equipment and so on
